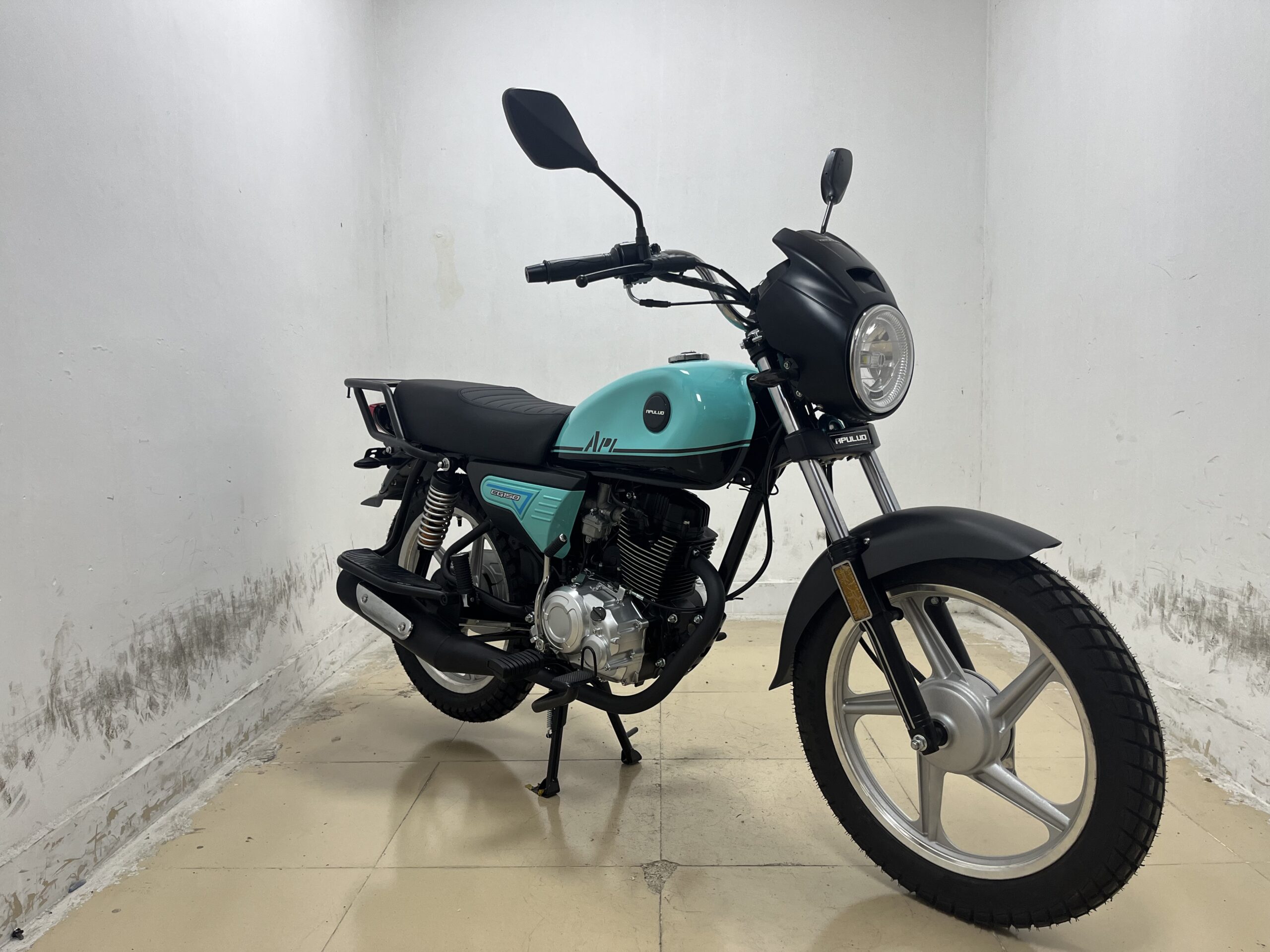

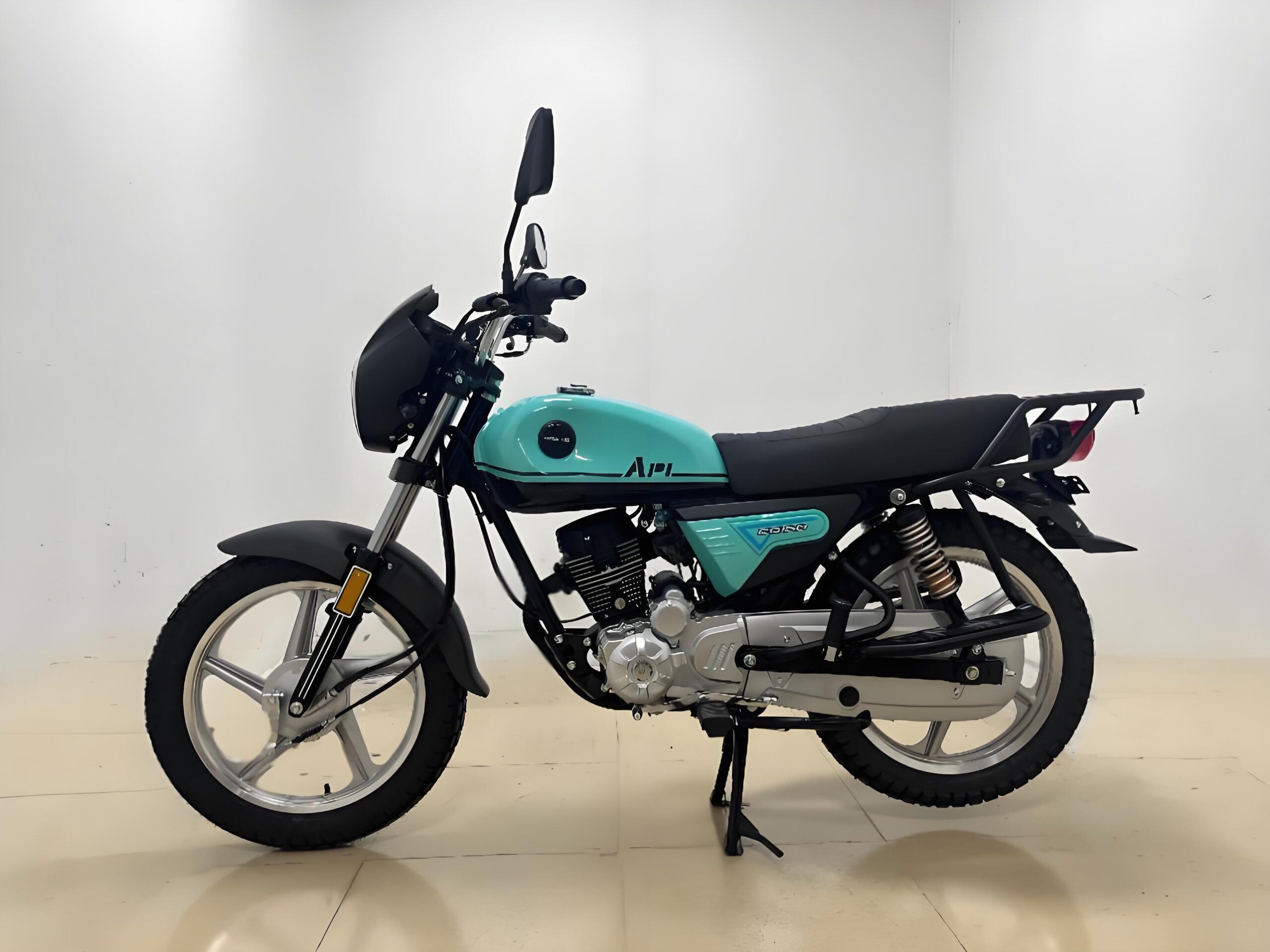

» CG Motorcycles » AP150-2C CG New 150CC Motorcycles
- Specifications
| Model 型号 | AP150-2C |
| Dimension (mm) 尺寸（mm） | 2070×747×995 |
| Wheelbase (mm) 轮距（mm） | 1245 |
| Curb Weight（KG) 整备质量（KG) | 115 |
| Rated max. Load (KG) 核定最大载重量 | 150 |
| Max. Speed (KM/H) 最高速度（KM/H) | 90 |
| Brake 制动方式（前/后）） | Front disc/Rear disc 前碟后鼓 |
| Brake disc/hub operating diameter 制动盘/毂工作直径 | Frontφ130,Rearφ130 |
| Ways of Brake 制动操作方式 | Hand brake / Foot brake 手刹/脚刹 |
| Starting way 启动方式 | Electric / kick 电启动 / 脚启动 |
| Front tire 前轮规格 | 3.00-17 |
| Rear tire 后轮规格 | 100/80-17 |
| Engine 发动机 | Single-cylinder, four-stroke 单缸、四冲程 |
| Engine model 发动机型号 |
162FMJ-2 |
| Engine displacement（ml) 发动机排量（ml） |
149 |
| Cooling way 冷却方式 | AIR cooling 自然风冷 |
| Compress ratio（g/KW.h）压缩比 | 9.2：1 |
| Cylinder diameter* Piston stroke mm）缸径*行程（mm) | Φ62*49.5 |
| Idle（r/min）怠速（r/min) | 1400±140 |
| Max power（KW/r/min）最大功率（KW/r/min) | 8.5/8500±100 |
| Max. Torque（N.m/r/min）最大扭矩（N.m/r/min） | 10.5/7000±100 |
| Lowest fuel consumption（g/KW.h）油耗（g/KW.h) | ＜354 |
| Lubricating system 润滑方式 | Stress Splash 压力飞溅 |
| Gear 档位 | International five gear/Others 国际五档/可选 |
